377523

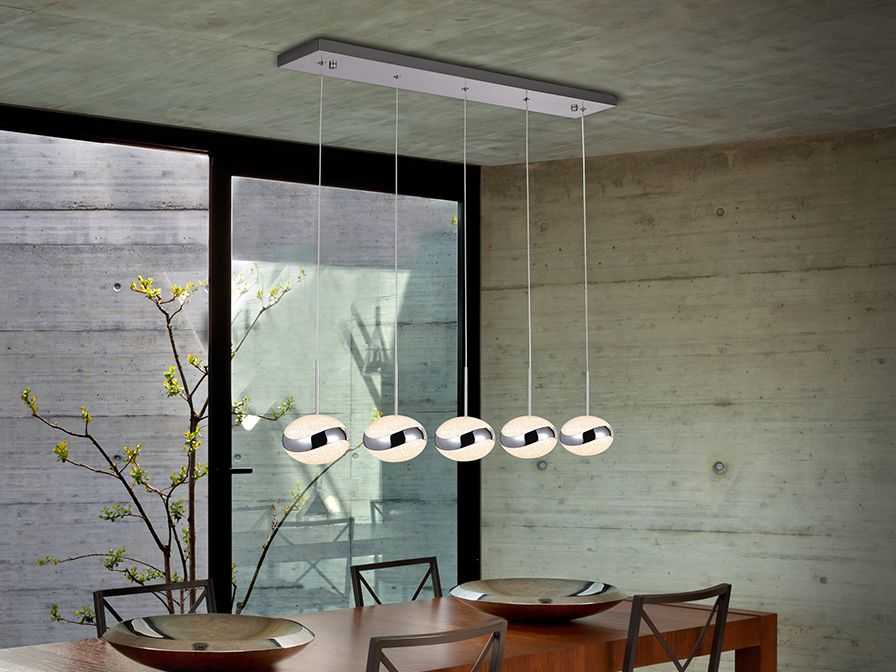

·LIPSE· LED LAMP, 5L., CHROME

>>ITEM CANCELLED<<

· This lamp is supplied with GRAVITY TOGGLES, to improve ceiling fixing.

GENERAL INFORMATION

Catalogue:
Page:
EAN Code:

i36 Lighting
77
8435435325053

SIZES

Sizes:
Height installed:
Weight:

↔ 65.0 ↨ 17.0

12.0 cm
30.0/ max. 120.0 cm
2.1 Kg

SIZES WITH PACKAGING

Weight:
Volume:
Sizes:
Contains:

2.6 Kg
0.0300 m³
↔ 75.0 ↨ 21.0

19.0 cm
1 Unit/s

TECHNICAL INFORMATION

Lampholder:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Colour temperature:
Average lifespan:
Power factor:
CRI:

led strip
G
IP 20
Class 1
25W
220/240 V
50/60 Hz
1,600 lm
3000 K
25,000h
>0.90
>85

DRIVER LED

Make:
Model:
Quantity:
Dimmable:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary current:
Sizes:

EAGLERISE
LS-30-300LI3
1 Unit/s
No
30W
50-60 Hz
220-240 V
Corriente constante
300 mA
↔ 11.5 ↨ 2.7

4.4 cm

ADDITIONAL INFORMATION

Material:
Finish:
Sizes of the shade / glass shad:
Sizes of the canopy (space for installation):
Cable colour:

Metal, acrylic
Chrome, clear
ø12.0 ↨ 9.0 cm
↔ 60.0 ↨ 3.5

5.0 cm
clear
