786621D

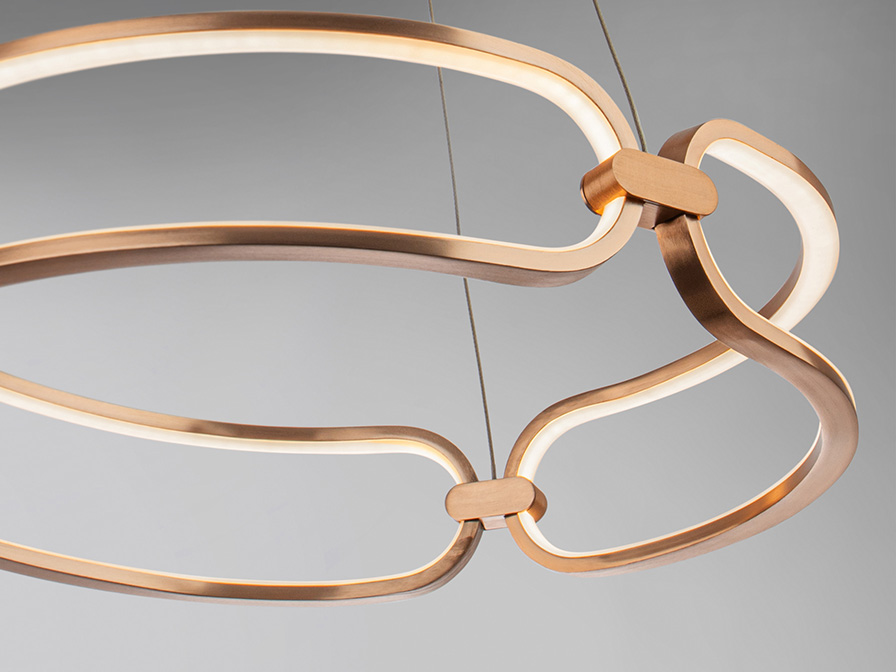

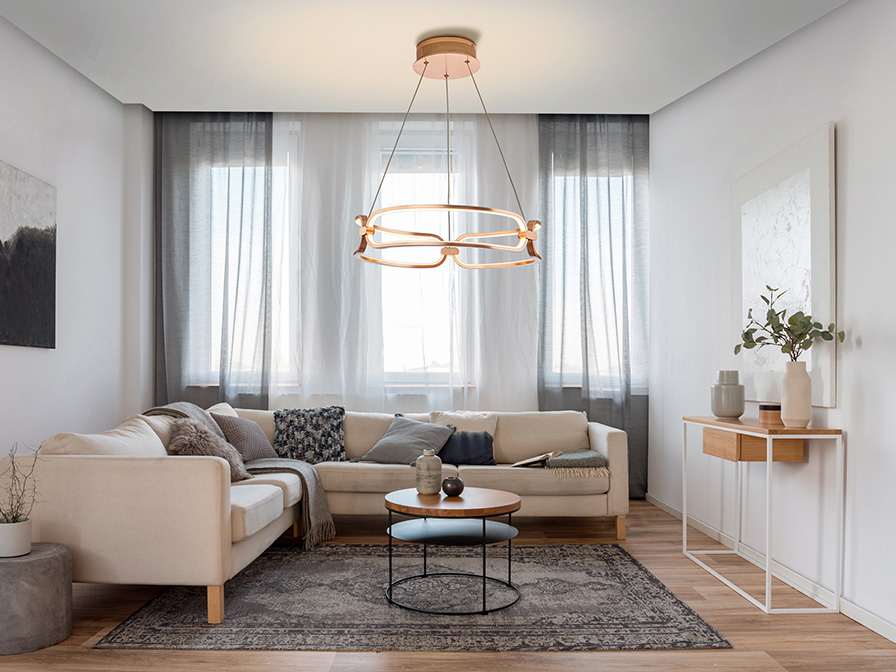

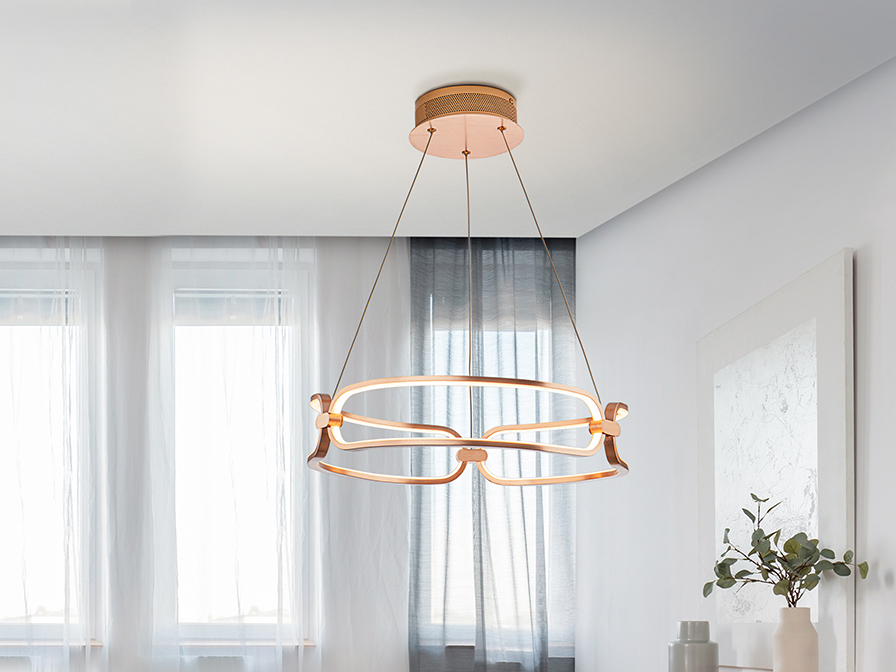

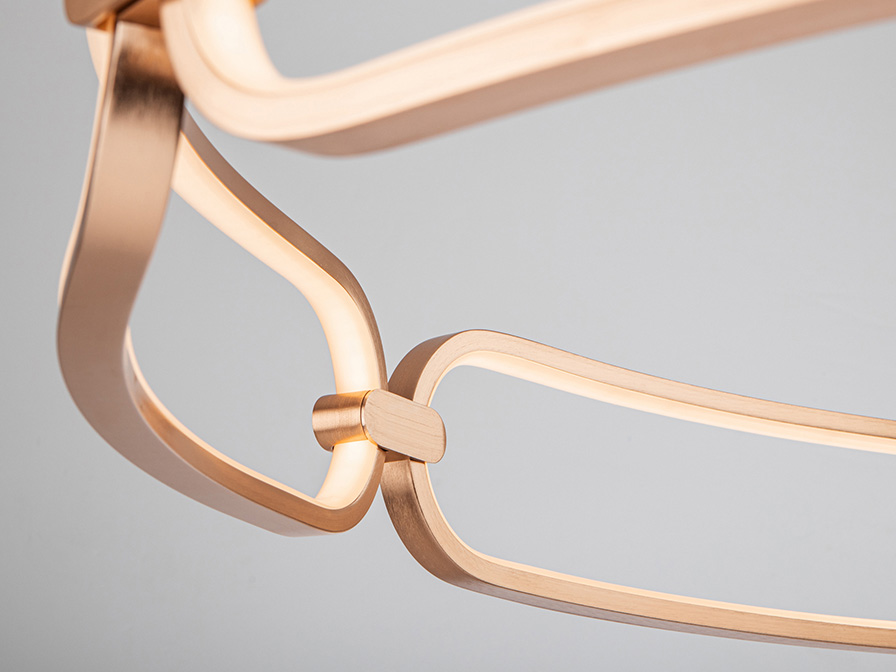

·COLETTE· LED LAMP Ø47 GOLD ROSE, DIMM

>>ITEM CANCELLED<<

This product uses a 0-10V dimmable LED driver, a dimmer and a radio frequency remote control.

GENERAL INFORMATION

Catalogue:
Page:
EAN Code:

I38 Ligthing
27
8435435332389

SIZES

Sizes:
Height installed:
Weight:

ø47.0 ↨ 10.0 cm
45.0/ max. 120.0 cm
1.6 Kg

SIZES WITH PACKAGING

Weight:
Volume:
Sizes:
Contains:

2.6 Kg
0.0500 m³
↔ 54.0 ↨ 17.0

54.0 cm
1 Unit/s

TECHNICAL INFORMATION

Lampholder:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Dimmable:
Regulation:
Dimmer reference:
Colour temperature:
Average lifespan:
Power factor:
CRI:

led strip
F
IP 20
Class 1
37W
180/240 V
50/60 Hz
3,330 lm
Yes
REMOTE CONTROL
600501
3000 K
50,000h
>0.90
>80

DRIVER LED

Make:
Model:
Quantity:
Dimmable:
Type of dimming:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary voltaje:
Sizes:

SCHULLER
72402
1 Unit/s
Sí
1-10V
40W
50-60 Hz
180-240 V
Voltaje constante
24 V
↔ 14.0 ↨ 3.0

4.5 cm

ADDITIONAL INFORMATION

Material:
Finish:
Sizes of the canopy (space for installation):

Aluminium, silicone
Rose gold, opal
ø16.0 ↨ 5.0 cm
