793659D

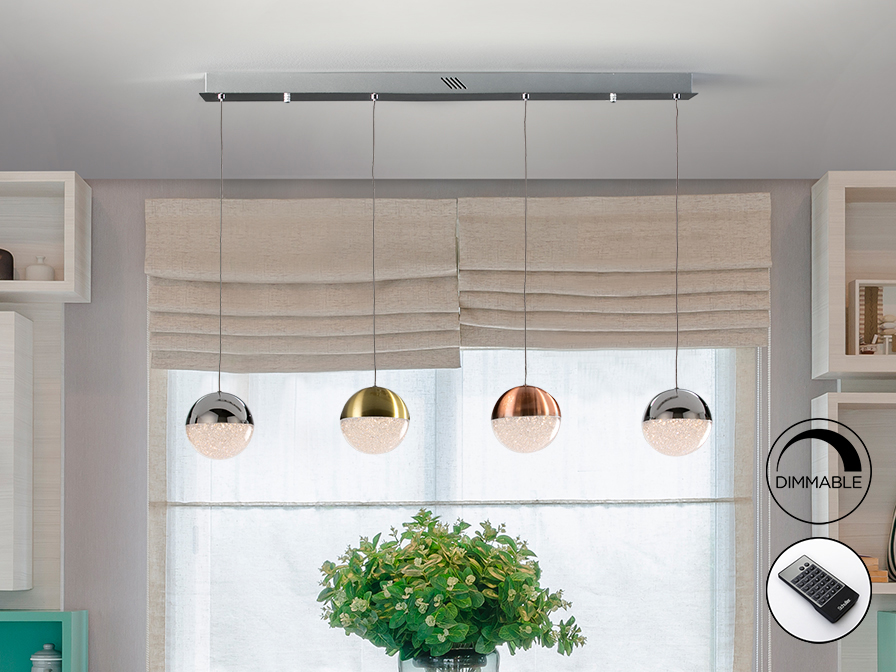

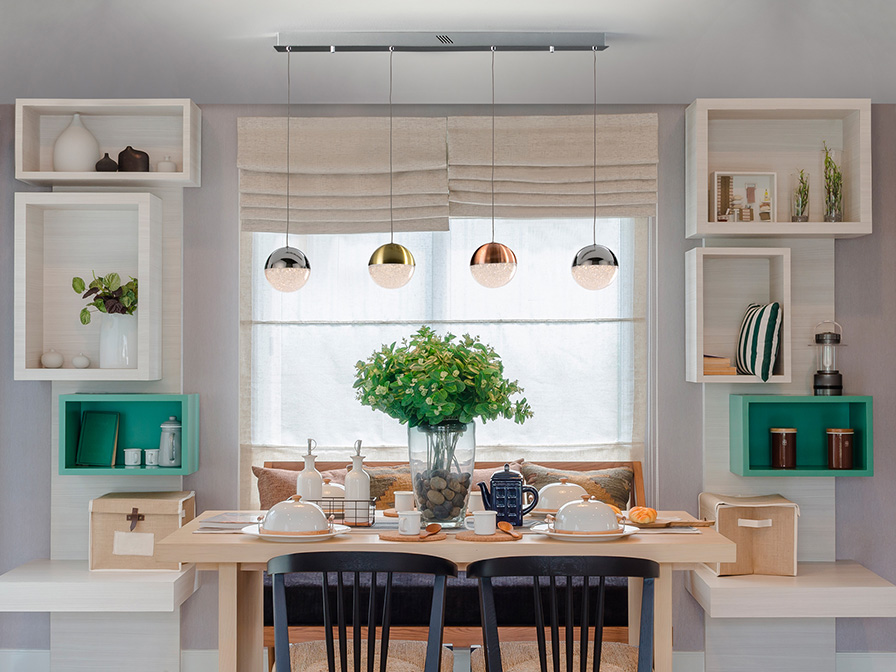

·SPHERE· DIMMABLE LED LAMP, 4L.

>>ITEM CANCELLED<<

This product includes LED drivers with 0-10V or PWM diming, a receiver and a remote control by radiofrecuency. To use it with wall dimmer, use just this type of dimmers. Any other type would damage the LED driver.

GENERAL INFORMATION

Catalogue:
Page:
EAN Code:

i39 Ligthing
161
8435435327989

SIZES

Sizes:
Weight:

↔ 91.0 ↨ 12.0

12.0 cm
3.2 Kg

SIZES WITH PACKAGING

Weight:
Volume:
Sizes:
Contains:

4.1 Kg
0.0500 m³
↔ 92.0 ↨ 27.0

20.0 cm
1 Unit/s

TECHNICAL INFORMATION

Lampholder:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Dimmable:
Regulation:
Dimmer reference:
Colour temperature:
Average lifespan:

PCB
G
IP 20
Class 1
19.20W
110/220 V
50/60 Hz
1,152 lm
Yes
REMOTE CONTROL
600501
3000 K
50,000h

DRIVER LED

Make:
Model:
Quantity:
Dimmable:
Type of dimming:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary voltaje:
Sizes:

SCHULLER
70201
1 Unit/s
Sí
1-10V
20W
50-60 Hz
100-265 V
Voltaje constante
24 V
↔ 14.0 ↨ 2.7

4.5 cm

ADDITIONAL INFORMATION

Material:
Finish:
Sizes of the shade / glass shad:
Sizes of the canopy (space for installation):
Cable colour:

Metal, polycarbonate
Chrome, brass, copper, clear
ø12.0 ↨ 6.4 cm
↔ 94.0 ↨ 3.5

8.5 cm
Clear
