Tono301862

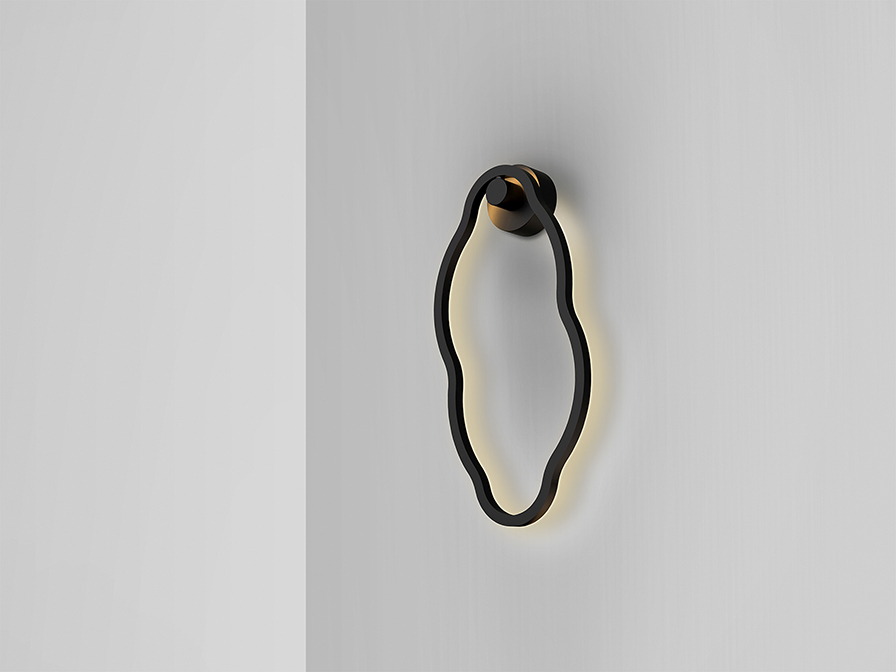

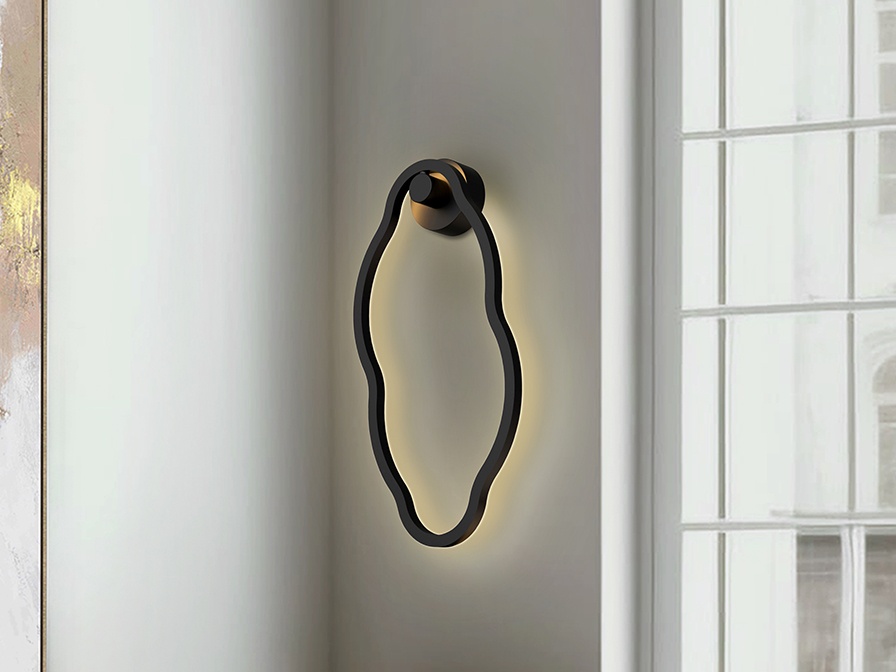

TONO- BLACK WALL LAMP

Wall lamp, made of aluminium and metal, matt black finish. Opal acrylic diffuser. 23W LED, 1,175 lm. 3.000 K. DIMMABLE.

GENERAL INFORMATION

EAN Code:
Type:
Collection:

8435435340032
Wall lamps
Tono

SIZES

Sizes:
Weight:

↔ 28.0 ↨ 51.0

8.0 cm
0.8 Kg

SIZES WITH PACKAGING

Weight:
Volume:
Sizes:
Contains:

1.4 Kg
0.0350 m³
↔ 61.0 ↨ 16.0

36.0 cm
1 Unit/s

TECHNICAL INFORMATION

Lampholder:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Colour temperature:
Average lifespan:
Power factor:
CRI:

led strip
G
IP 20
Class 1
23W
220 V
50/60 Hz
1,175 lm
3000 K
50,000h
>0.90
>80

DRIVER LED

Make:
Model:
Quantity:
Dimmable:
Type of dimming:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary current:
Sizes:

WAIBERLON
HLV65025CTD
1 Unit/s
Sí
Triac&0-10V
25W
50-60 Hz
220-240 V
Corriente constante
650 mA
↔ 6.5 ↨ 2.8

6.5 cm

ADDITIONAL INFORMATION

Material:
Finish:
Sizes of the canopy (space for installation):

Aluminium, metal, acrylic.
Matt black, opal.
ø10.0 ↨ 4.0 cm
