793659

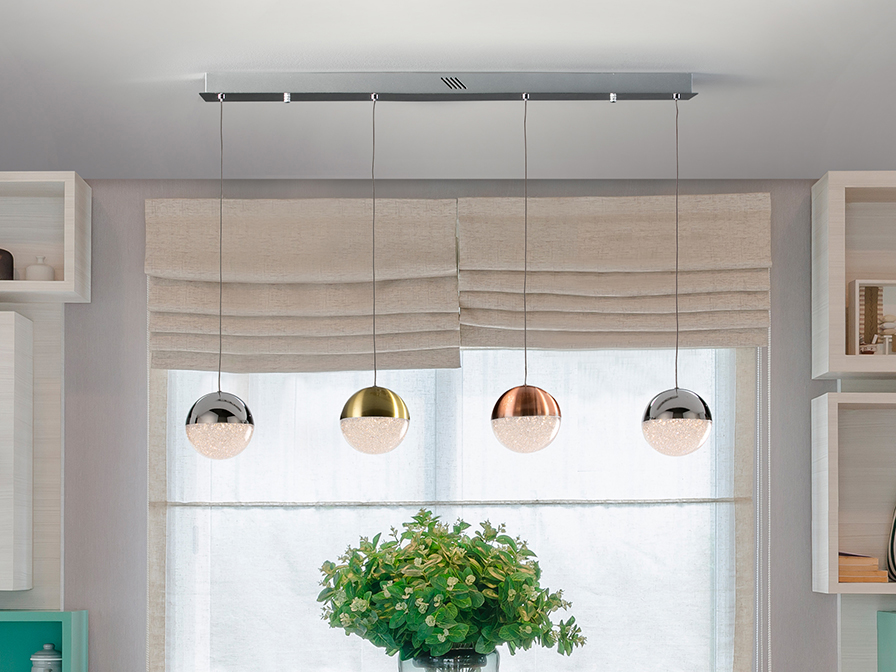

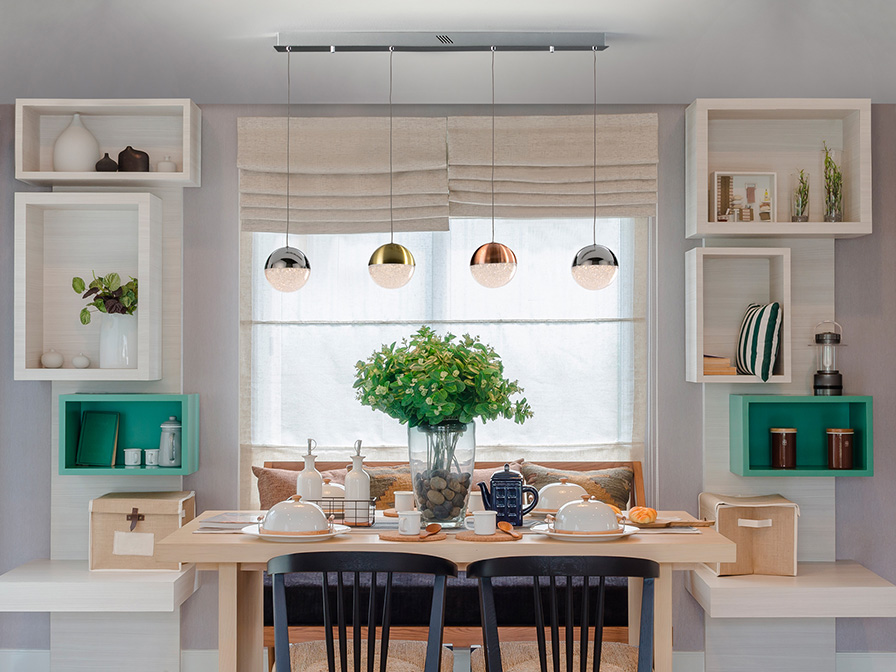

·SPHERE· LED LAMP 4L., COLOUR

>>ITEM CANCELLED<<

This product includes LED drivers with 0-10V or PWM diming. To use it with wall dimmer, use just this type of dimmers. Any other type would damage the LED driver. · This lamp is supplied with GRAVITY TOGGLES, to improve ceiling fixing.

GENERAL INFORMATION

Catalogue:
Page:
EAN Code:

i39 Ligthing
161
8435435322731

SIZES

Sizes:
Height installed:
Weight:

↔ 91.0 ↨ 12.0

12.0 cm
25.0/ max. 120.0 cm
3.2 Kg

SIZES WITH PACKAGING

Weight:
Volume:
Sizes:
Contains:

4.1 Kg
0.0500 m³
↔ 92.0 ↨ 27.0

20.0 cm
1 Unit/s

TECHNICAL INFORMATION

Lampholder:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Colour temperature:
Average lifespan:
CRI:

PCB
G
IP 20
Class 1
19.2W
180/240 V
50/60 Hz
1,152 lm
3000 K
50,000h
>80

DRIVER LED

Make:
Model:
Quantity:
Dimmable:
Type of dimming:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary voltaje:
Sizes:

SCHULLER
74033
1 Unit/s
Sí
Triac&0-10V
30W
50-60 Hz
180-240 V
Voltaje constante
24 V
↔ 10.7 ↨ 2.2

4.0 cm

ADDITIONAL INFORMATION

Material:
Finish:
Sizes of the shade / glass shad:
Sizes of the canopy (space for installation):
Cable colour:

Metal, polycarbonate
Chrome, brass, copper, clear
ø12.0 ↨ 6.0 cm
↔ 82.0 ↨ 3.5

6.5 cm
Clear
