793258GB

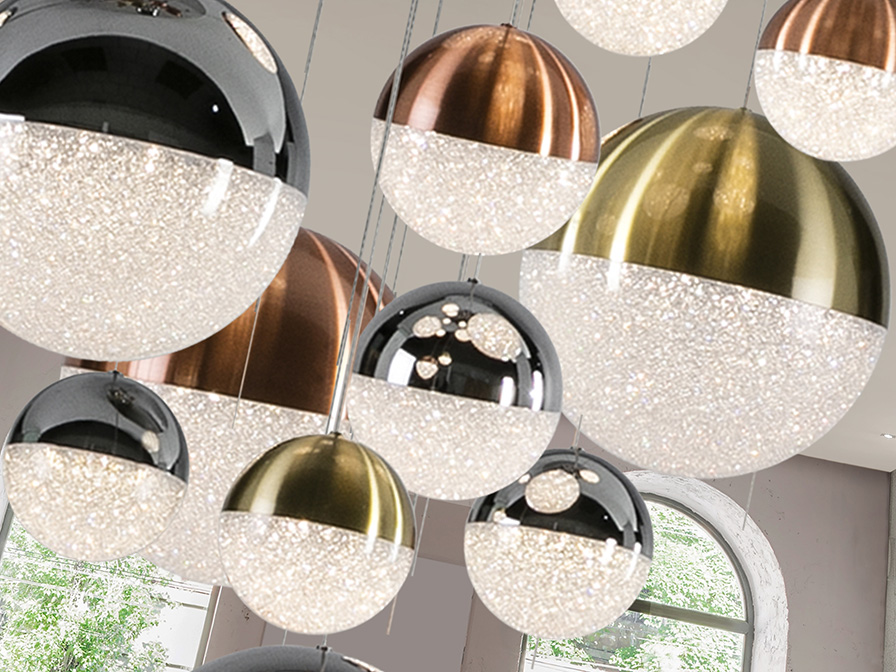

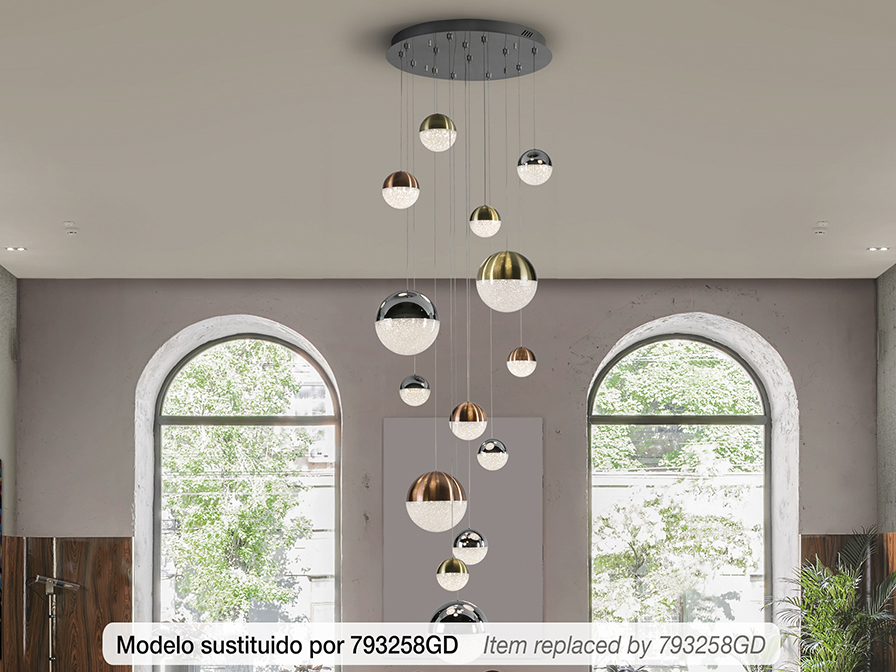

·SPHERE· LED LAMP 14L Ø60x500 DIMMABLE

>>ITEM CANCELLED<<

Includes a led driver with Bluetooth dimming functions to be used with a mobile or tablet App.It can also be used with a smart speaker such as Google Home or Amazon Echo if a Bluetooth Gateway device is added. Dimming not compatible with wall dimmer. Shades with adjustable length, maximum 500 cm. · This lamp is supplied with GRAVITY TOGGLES, to improve ceiling fixing.

GENERAL INFORMATION

Catalogue:
Page:
EAN Code:

i39 Ligthing
165
8435435331764

SIZES

Sizes:
Height installed:
Weight:

ø60.0 ↨ 230.0 cm
130.0/ max. 500.0 cm
10.9 Kg

SIZES WITH PACKAGING

Weight:
Volume:
Sizes:
Contains:

14.0 Kg
0.1840 m³
↔ 67.0 ↨ 41.0

67.0 cm
1 Unit/s

TECHNICAL INFORMATION

Lampholder:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Dimmable:
Regulation:
Colour temperature:
Average lifespan:
Power factor:
CRI:

PCB
G
IP 20
Class 1
78.60W
100/277 V
50/60 Hz
5,502 lm
Yes
BLUETOOTH
3000 K
50,000h
>0.90
>80

DRIVER LED

Make:
Model:
Quantity:
Dimmable:
Type of dimming:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary voltaje:
Sizes:

SCHULLER
71103
1 Unit/s
Sí
Bluetooth
100W
50-60 Hz
100/277 V
Voltaje constante
24 V
↔ 20.0 ↨ 4.2

7.0 cm

ADDITIONAL INFORMATION

Material:
Finish:
Assembling time by customer:
Sizes of the canopy (space for installation):

Metal, polycarbonate
Copper&satin brass&chrome
10 min
ø51.0 ↨ 5.5 cm

DOWNLOADS
