168377

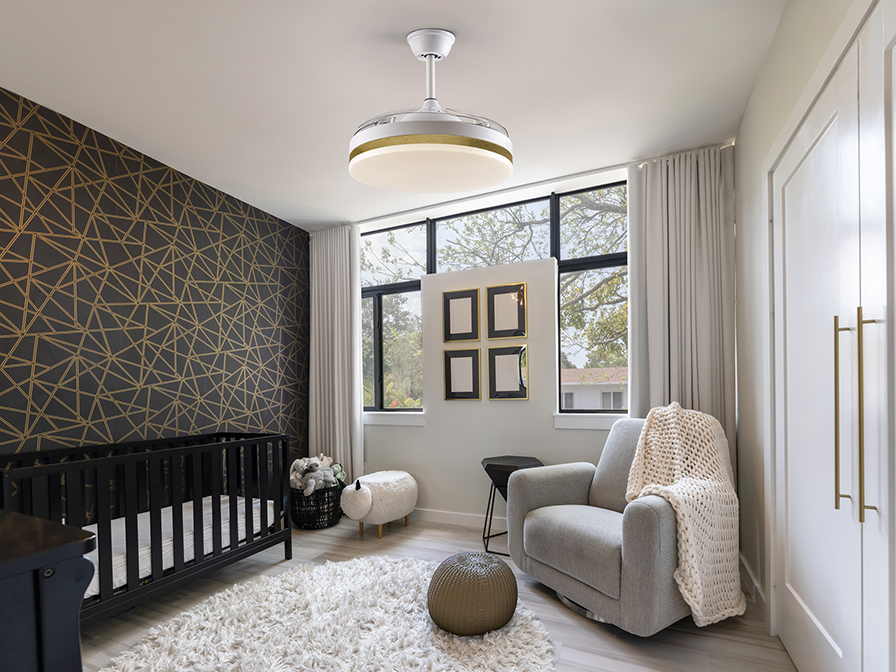

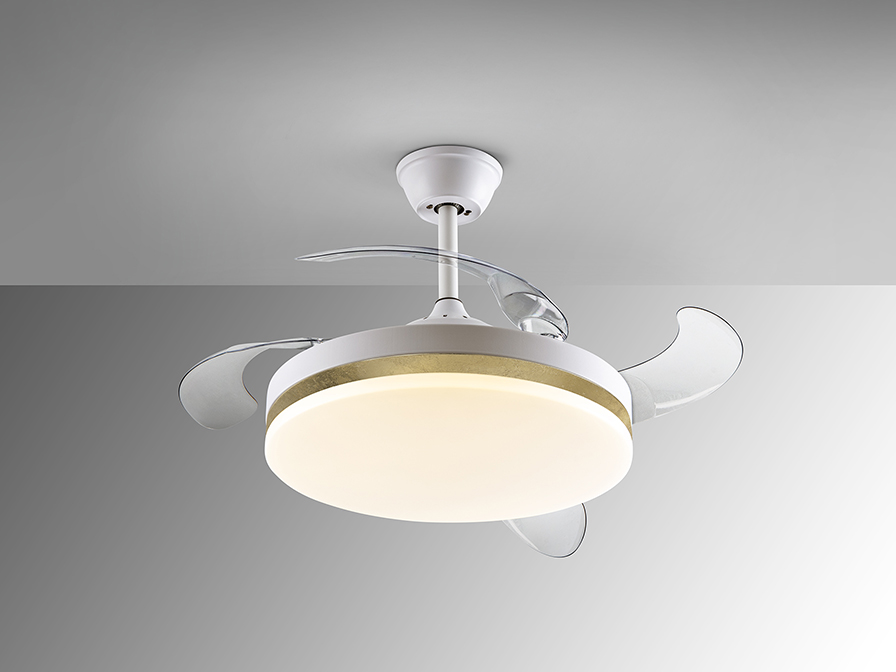

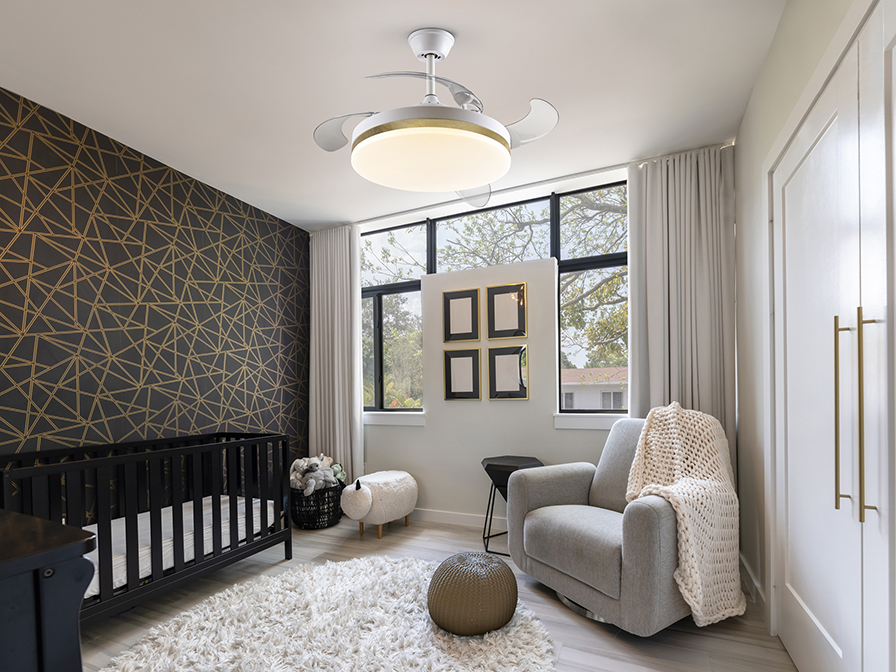

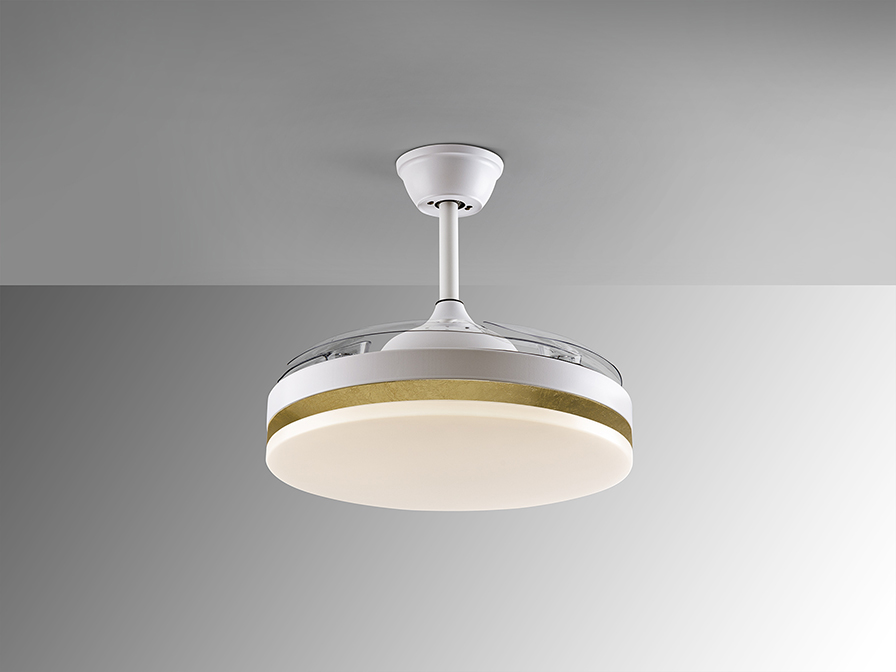

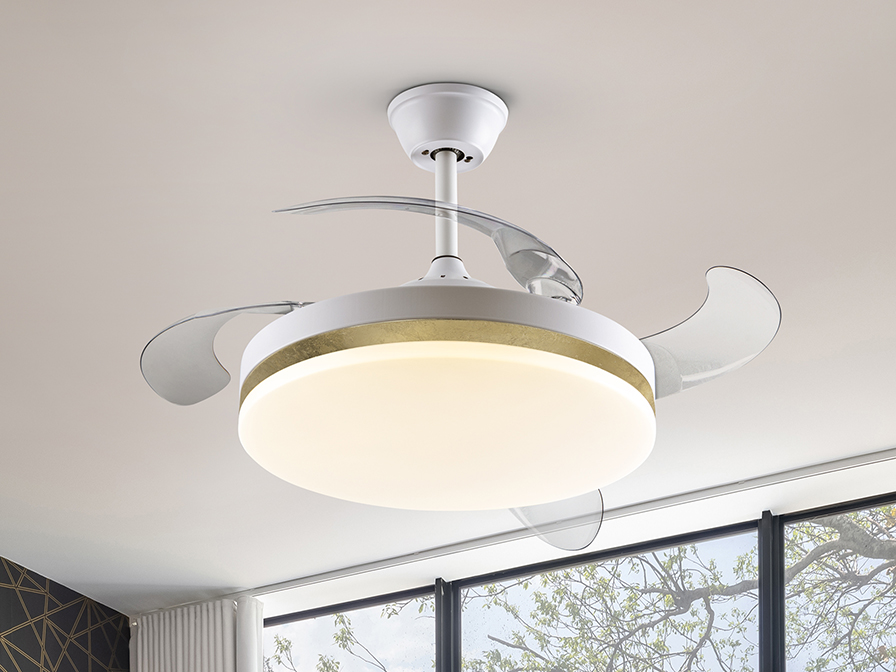

VENTO - FAN WHITE-GOLD Ø50/100, DIMMABLE

>>ITEM CANCELLED<<

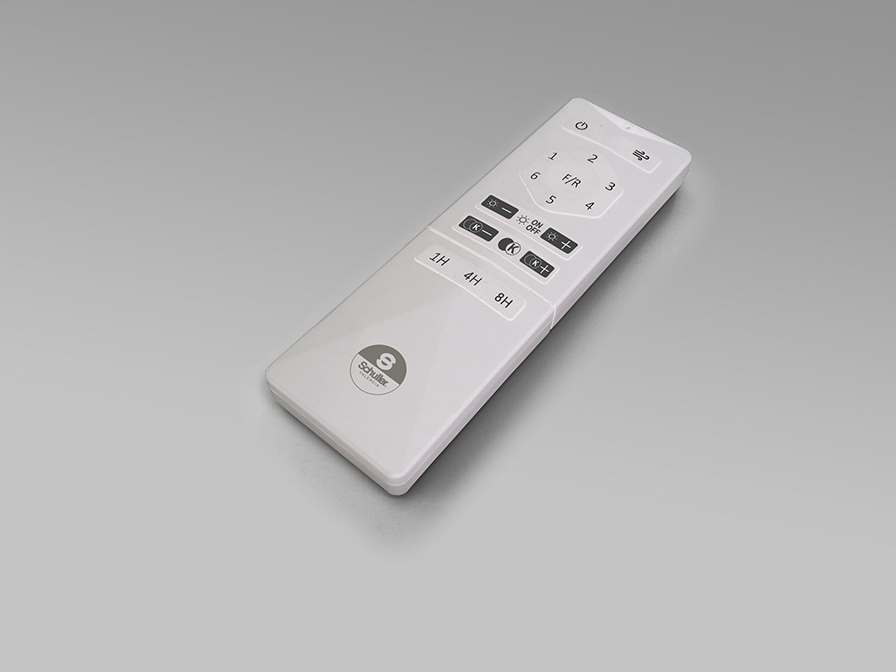

Remote control included. 36W LED, 1830 lm, 3,000-6,000 K. Fan: 4-blades, Extended Ø100 cm. Radius action: Ø180 cm (measured at 140 cm below the fan). 35W DC motor. 6 Speeds(153/173/190/201/220/240 rpm). Air flow (3000/4000/5500/6500/7500/9500 m3/h). Reverse movement. Noise: 36 a 45Db.

GENERAL INFORMATION

Catalogue:
Page:
EAN Code:

i42 Lighting
322
8435435337100

SIZES

Sizes:
Height installed:
Weight:

ø50.0 ↨ 35.0 cm
35.0/ max. 45.0 cm
7.5 Kg

SIZES WITH PACKAGING

Weight:
Volume:
Sizes:
Contains:

9.0 Kg
0.0880 m³
↔ 55.0 ↨ 29.0

55.0 cm
1 Unit/s

TECHNICAL INFORMATION

Lampholder:
Energy class:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Dimmable:
Regulation:
Colour temperature:
Average lifespan:
Power factor:
CRI:

PCB
G
Class 1
36W
220/240 V
50/60 Hz
1,830 lm
Yes
REMOTE CONTROL
3000-6000 K
30,000h
>0.90
>80

DRIVER LED

Make:
Model:
Quantity:
Dimmable:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Sizes:

CADJA
KCJS36L2WY-285GG1
1 Unit/s
Sí
36W
50-60 Hz
220-240 V
Corriente constante
↔ 8.8 ↨ 1.6

5.0 cm

ADDITIONAL INFORMATION

Material:
Finish:
Assembling time by customer:
Sizes of the shade / glass shad:
Sizes of the canopy (space for installation):

Metal, acrylic.
Matt white, gold leaves, opal.
10 min
ø48.5 ↨ 5.0 cm
ø15.0 ↨ 6.0 cm
